Sale!

Shock absorber upper mount -BGM PRO Clip on aluminium CNC- Lambretta LI, LIS, SX, TV, DL, GP – silver

Original price was: €69,00.Current price is: €20,70.

SKU: BGM7650S Category: Tag:

Description

BGM suspension upgrade for Lambretta
If you want to adapt the fork of your Lambretta to today’s engine performance and the high demands of a modern chassis, you need high-quality damping components.
BGM offers excellent, multi-adjustable shock absorbers for this purpose.

Bolt On

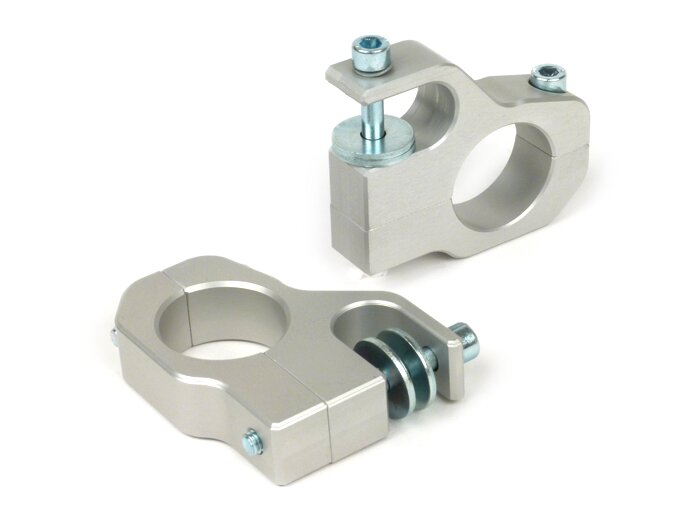

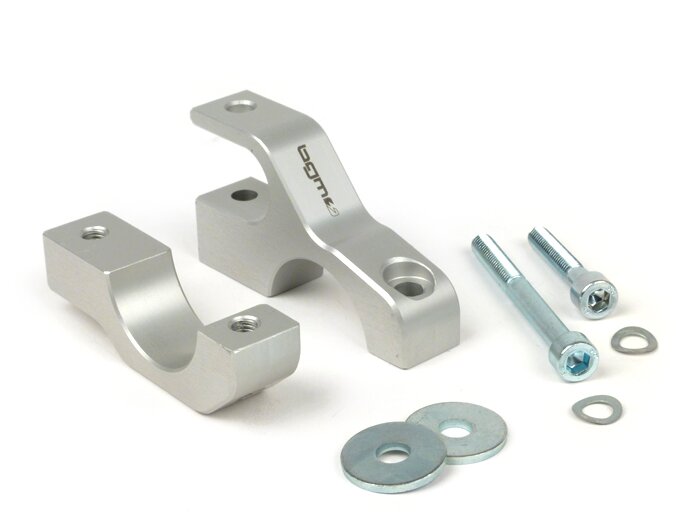

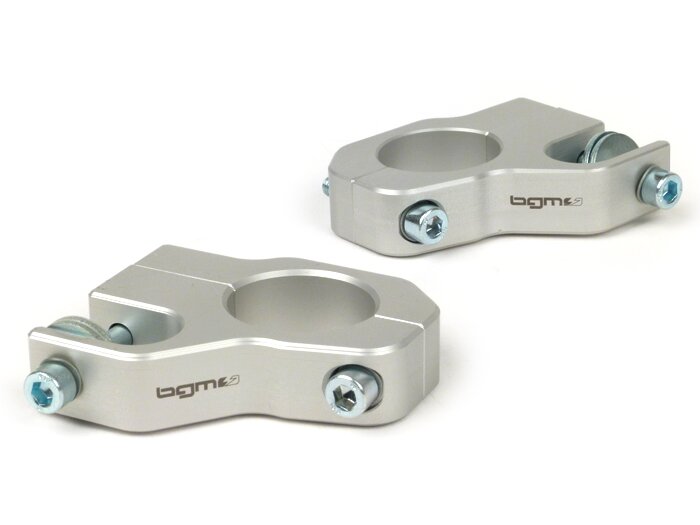

In order that these can also be mounted on forks without shock absorber mounting points, BGM offers screw-on brackets made of high-strength anodized aluminum. Welding on steel mounting brackets is no longer necessary.
The CNC milled parts are simply screwed together at the fork and form, due to the precise manufacturing, a high-strength, solid mounting base. Besides the BGM shock absorbers, all other dampers on the market can be mounted on this base. The different widths of the shock absorber eyes are adjusted by enclosed shims.

Info for mounting

  • Forklinks with shock absorber mounting or alternatively holders for shock absorbers below are required (see accessories)
  • The distance between the mounting points (center-center) should be 218-220mm
  • Align the shock absorber parallel to the direction of travel (inclined mounting pushes the silent rubbers laterally out of their guide)
  • Fits installation widths of 14,16 and 18mm:
    • 14mm: Casa Lambretta / FA Italia (+ 2 discs)
    • 16mm: BGM (+ 1 disc)
    • 18mm: SPAQ (0 washers)
  • Fastening of the screws 12 – 14Nm
  • The screws are secured by means of a domed spring washer under the screw head
  • Ensure that both parts are installed parallel
