Reinforcement of cluster gear support / engine casing -CMD Mighty Kong CNC- Vespa PX, T5 (VNX5T), GT125 (VNL2T), GTR125 (VNL2T), TS125 (VNL3T), Sprint150 (VLB1T), Rally180 (VSD1T), Rally200 (VSE1T) in saldo

Description

Extremely reinforced CNC aluminum dust protection plate ‘Mighty Kong’ with integrated auxiliary shaft mount. This provides additional support for the auxiliary shafts and massively stabilizes the motor housing at this point. The plate and the bolt are made of high-strength aluminum EN AW-7075.
In addition to conventional bolting, the plate is attached to the main shaft area of the engine housing with grub screws (M5).

• Thread auxiliary shaft M9
• Connecting bolt with hexagonal drive SW17
• Counter thread M10

SUPPLY

• CNC milled dust protection plate made of high-strength aluminum (EN AW-7075)
• Connecting bolt to auxiliary shaft (SW17) made of high-strength tool steel (X33CrS16)

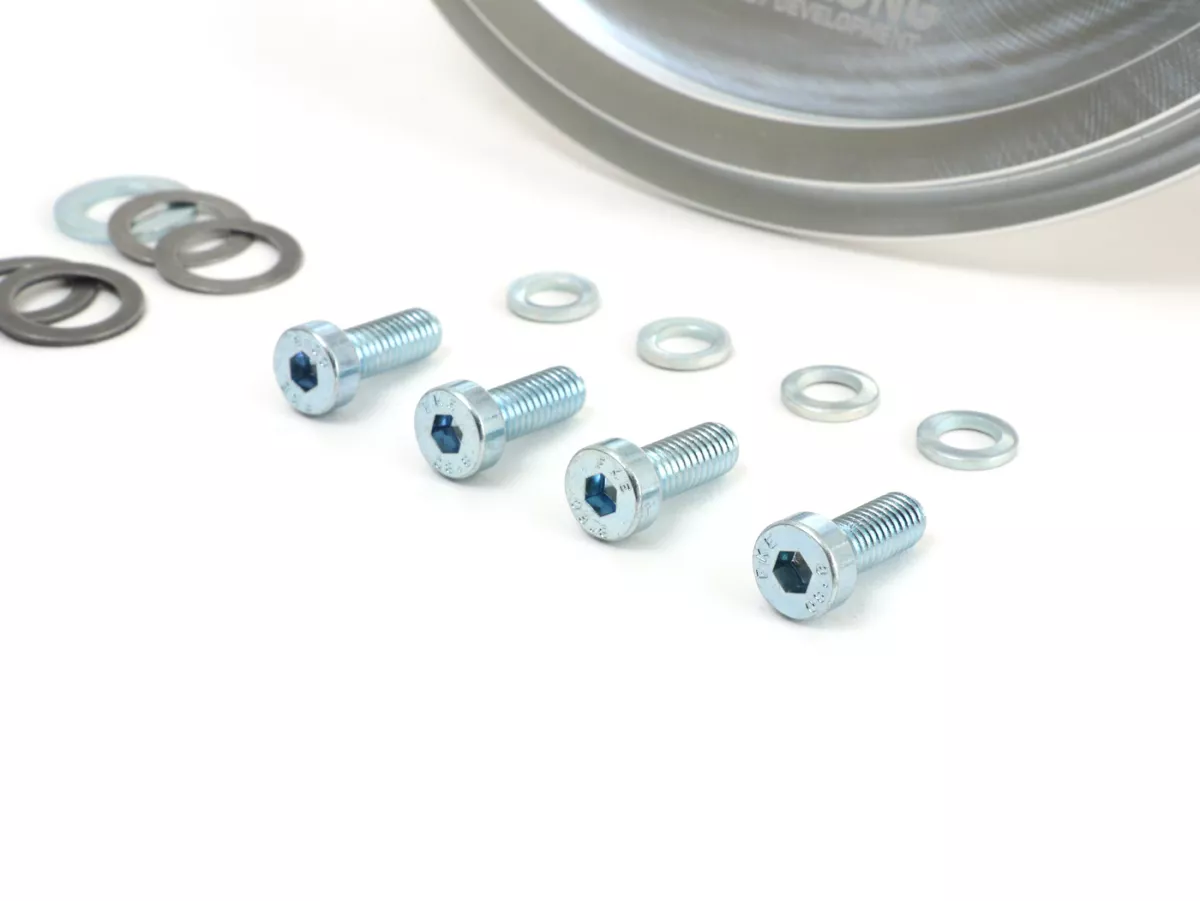

• Shim washers
• Cheese head screw M10 hexagon socket low
• Grub screws
• Drilling specifications for Pinasco housing with M6 screws

Utility model protected

(US131118)

AI-translation
