Description

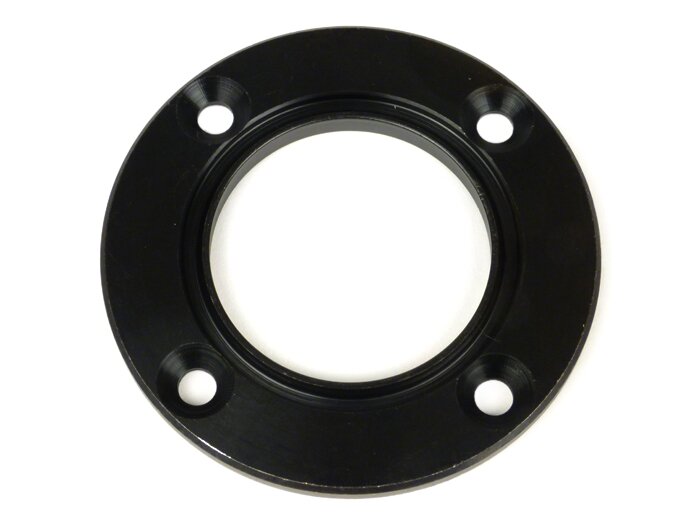

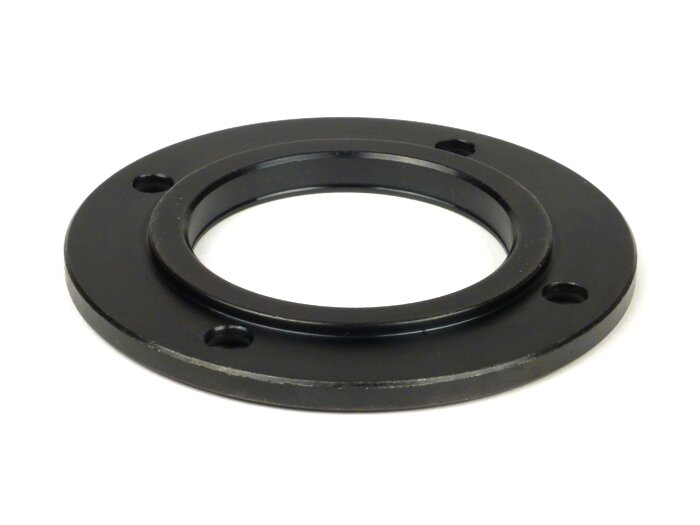

Cover plate ball bearing 6305 -CASA LAMBRETTA- Lambretta LI, LIS, SX, TV (Series 2, Series 3) – steel.
From Li Series 1 to Series 3, the cover plates for the 6305 ball bearing are made of steel. With the dl/GP series, original aluminium plates are used. The plates are identical in construction and therefore interchangeable.
Due to the higher rigidity we recommend the use of steel cover plates.
First the oil seal (33-50-6) with the spring pointing towards the crankcase is placed in the bearing plate. Then the round seal for the 6305 bearing (preferably greased) is placed on the bearing.
Tighten the cover plate crosswise with hexagon socket screws or Torx screws using a torque wrench. The recommended tightening torque is 4.7 – 5.2 Nm. A tiny drop of (medium strength) screw lock can be used additionally.
