Description
Very nice replica of the original Hella handlebar end indicators. It has, like the original, festoon lamps as illuminants. These are enclosed in 6V/18W as well as in 12V/18W, suitable for the respective vehicle electrical system.

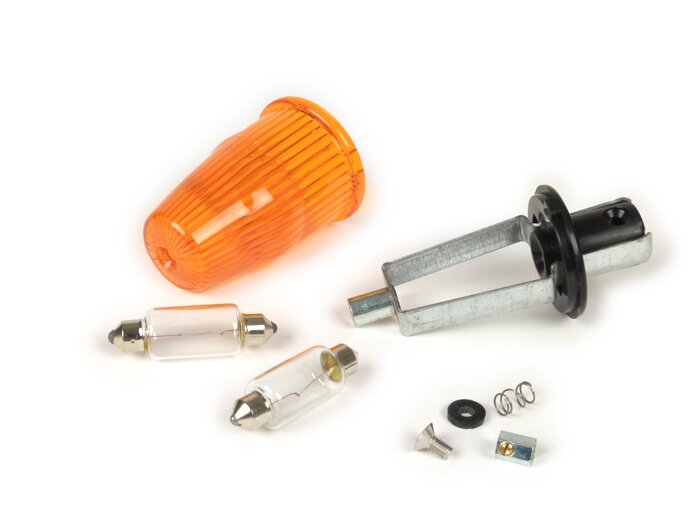

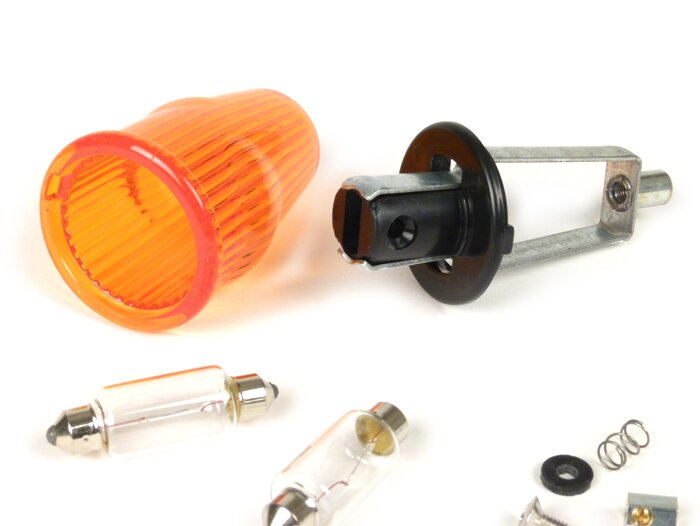

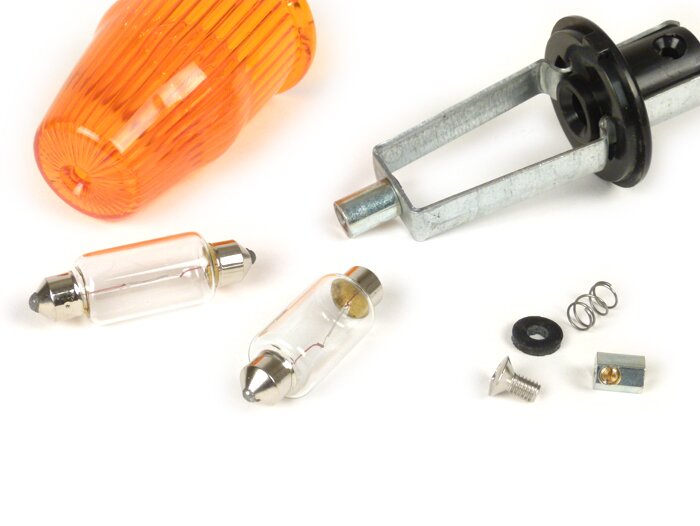

- blinker body with wire bracket
- blinker glass with rubber + countersunk screw
- hexagon with clamping screw (for power cable) + spring
- Soffitte 6V/18W+12V/18W
The soffitte are coloured orange for the black and transparent glasses.
The turn signals do not have a test mark.
Assembly instructions
Vespa scooters that were equipped with handlebar end turn signals ex works have so-called handlebar inner tubes. These do not rotate and have the correct pipe diameter for the attachment of the turn signals at the end of the handlebars. The vehicles also have rubber grips open at the end of the handlebars. Their end is turned upside down like a sock for dismounting and mounting the indicators. This way you have access to the fixing screw of the turn signals. The connection wire of the handlebar wiring harness is led through the inside of the turn signal, the spring is pushed over it, the hexagon with the clamping screw is pushed onto the cable and finally screwed together. By inserting the soffit the spring gets pre-tensioned and thus establishes the electrical connection. The ground connection is made via the wire clip which is inserted in the inner tube of the handlebars.
Cars without inner tube of the handlebars require a tube adapter of Ø17.5mm.
