Front brake caliper bracket -BGM CNC Touring, radial- Vespa PK, PX (1998-), My, 2011, Cosa, LML, Stella – black scorte limitate

Description

BRAKE CALL CUP ‘TOURING RADIAL’ BGM PRO FOR Vespa PX

Professional brake caliper mount from BGM PRO ‘Made in Italy’.
Allows the mounting of the radially mounted BGM PRO 4-piston caliper.
This allows, with fine dosing, braking values at motorcycle level.

MAXIMUM DELAY
A special feature of the BGM PRO caliper adapter is its uncompromising design for maximum possible deceleration. For this purpose, the caliper has been oriented in such a way that the brake pads are applied to the maximum outer diameter of the brake disc. Unlike other adapters, the BGM PRO caliper mount thus has the largest effective lever and thus also the best deceleration values.

MAXIMUM SAFETY
Improving driving safety was the dominant element in the development phase of the BGM PRO caliper mount. Thus, the possibility of lateral centering of the caliper to the brake disc was created. The BGM PRO set can be aligned with the extra slim BGM PRO caliper exactly centered to the brake disc. This is done with the help of the enclosed disc set. Compared to other suppliers, this ensures that the brake pistons, even with heavy wear of the pads / disc, always sufficient guide length is available in the caliper.

MAXIMUM COMPATIBILITY
The BGM PRO brake caliper mount replaces the original Piaggio component 1:1 and is optimally complemented by the BGM PRO brake caliper. However, due to the common hole pattern of 82mm used, calipers from other manufacturers (e.g. Stage6 (old type only, not MK2), RPM or Adelin) can also be used. However, the BGM PRO caliper builds particularly narrow and is the only one that can be adjusted exactly centered to the brake disc.

MAXIMUM QUALITY

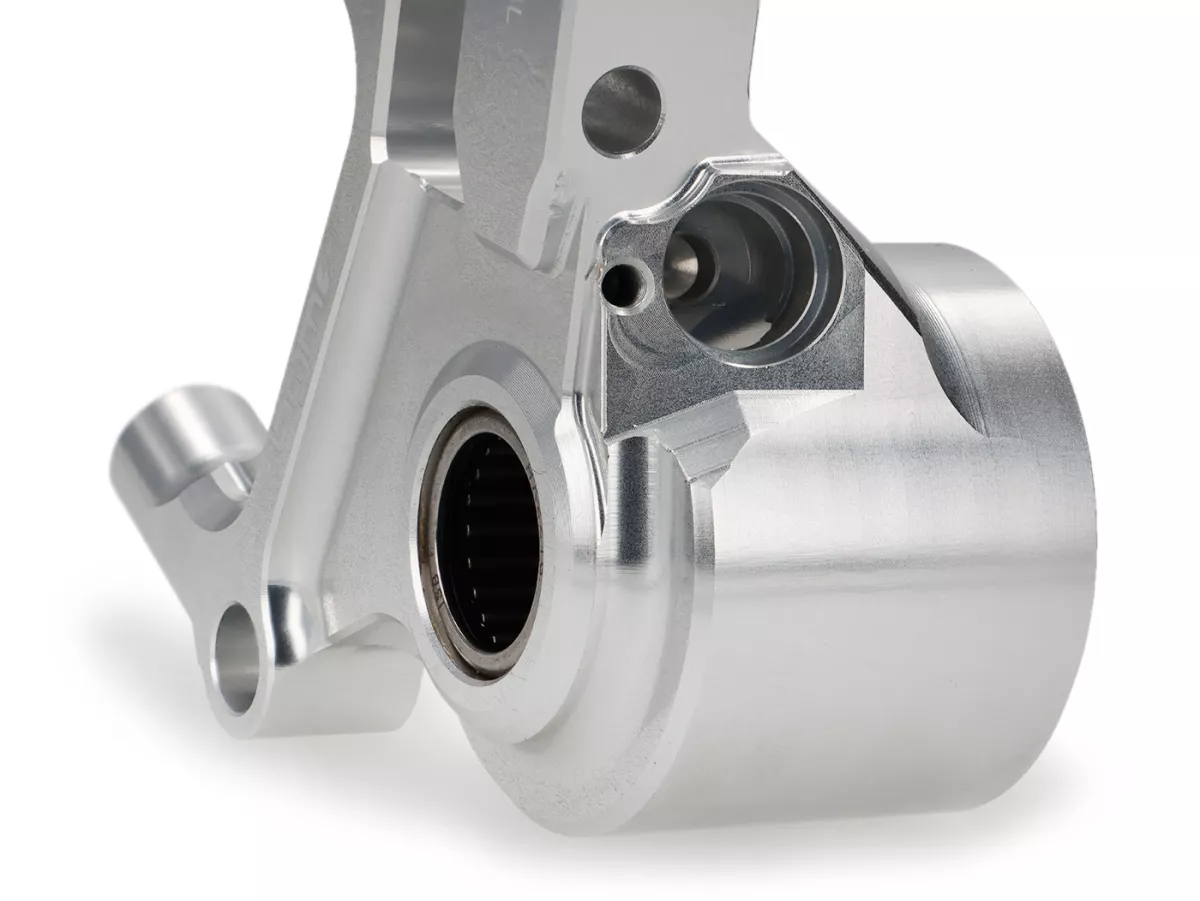

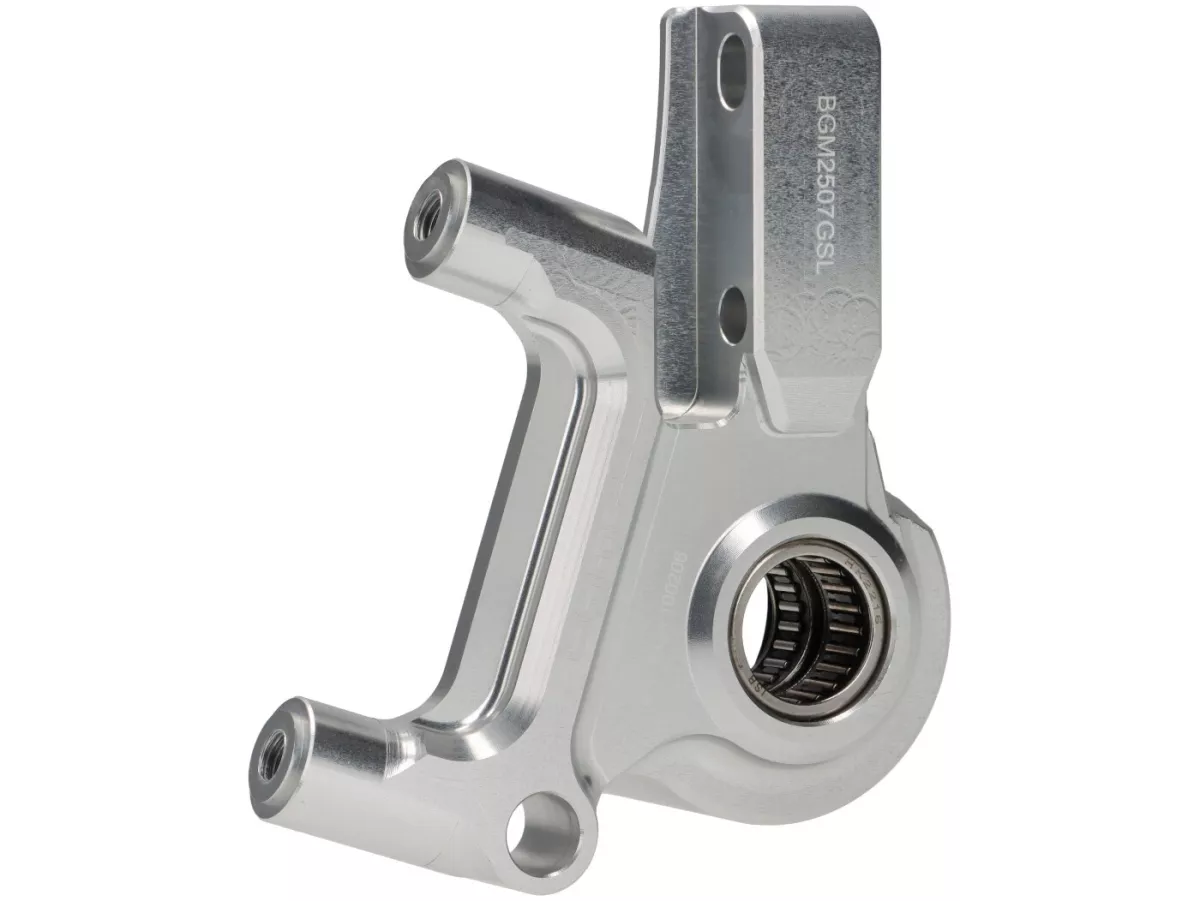

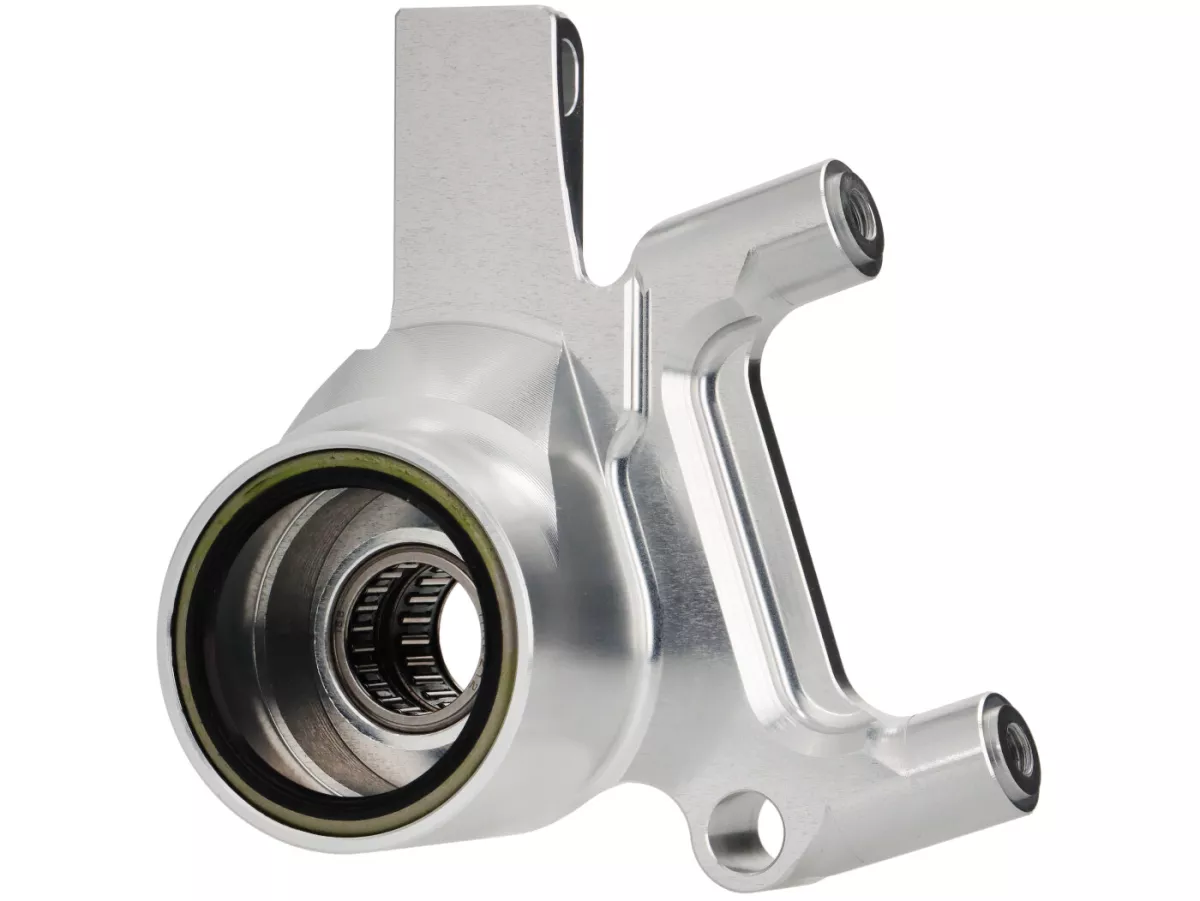

The BGM PRO caliper adapter is made of high-strength aluminum which is CNC machined in a specialized facility in Italy and finally hard anodized. This allows it to withstand the harshest environmental conditions and remain permanently solid and visually appealing. The mount is delivered ready to install, equipped with already mounted high quality needle bearings from European suppliers (SKF/INA).

SUPPLY
1x Brake caliper mount BGM PRO Radial Touring for Vespa PX

2x fixing screw for brake caliper M8x45mm hexagon socket

1x spacer set

1x O-ring 34,5×1,8mm

1x V-ring 22×3,5x26mm

1x circlip Ø20mm

VESPA OR LML?
The caliper mount is available for Vespa or LML. The difference between both types is the different dimensions of the speedometer drive. Therefore, the selection of the correct adapter depends on the existing/used brake drum (Piaggio or LML).
Examples:

• A Vespa PX (year 1985) which has been retrofitted with a Grimeca disc brake kit needs the adapter type PX.

• A Vespa PX (1985) that has been retrofitted with an LML fork for disc brakes requires the adapter type LML.

• A Vespa PX Disc (year 1998) needs the adapter type Vespa PX.
