Engine repair kit -OEM QUALITY- Vespa PX125, PX150 (1998-)

Description

Complete kit for the big engine revision.
When selecting the kit we have taken great care to use only original PIAGGIO spare parts as far as possible. Where these are no longer available, we have used parts that are of OEM quality.

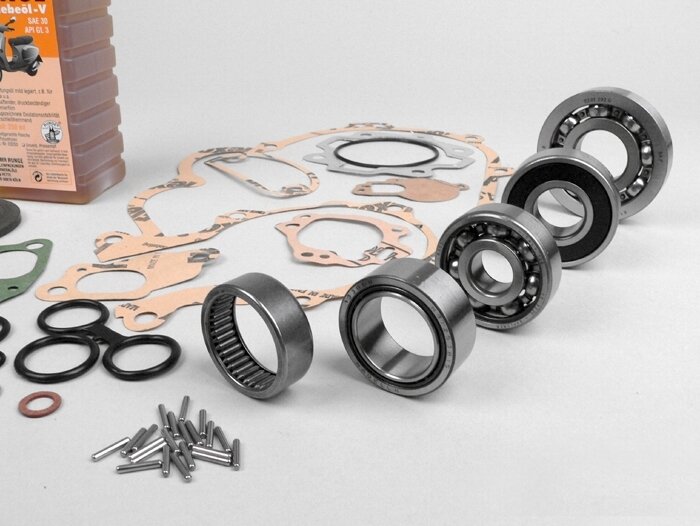

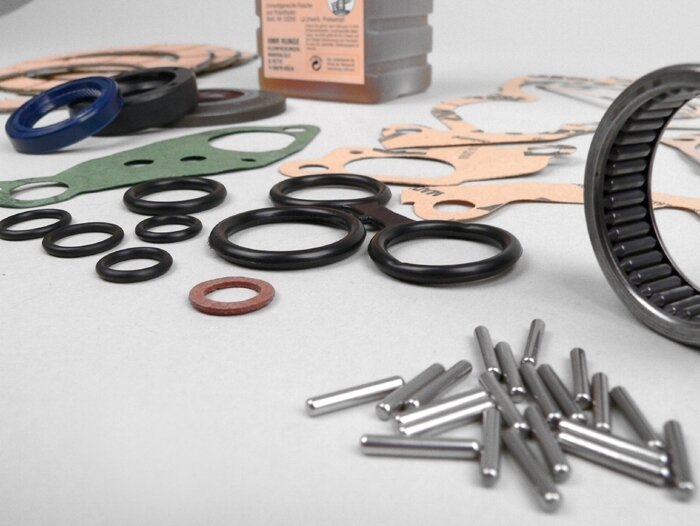

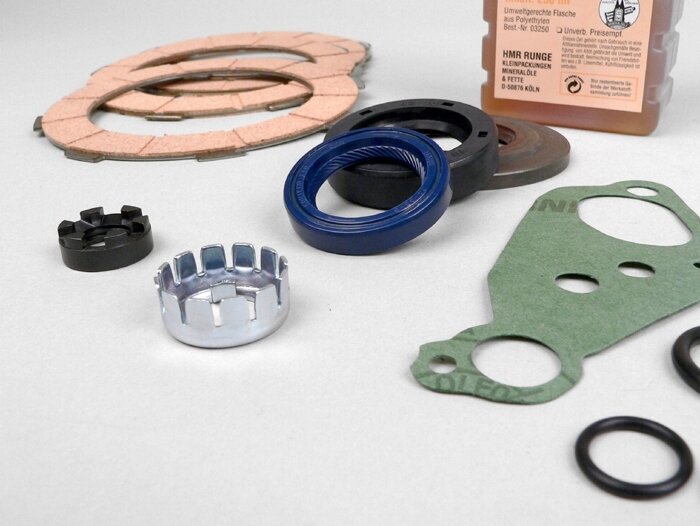

The set consists of:

• 3820025 Motor gasket kit -VESPA- PX 80-150 Lusso + O-rings
• 3820044 Oil seal kit -VESPA- PX 80-200 Lusso, T5, Cosa – HR oil seal inside
• 3720006 Ball bearing -6204 2RSH- (20x47x14mm)
• 3720002 Needle bearing -NBI 253815- (25x38x15mm)
• 3720001 Ball bearing -6204613912- (25x62x12mm) 8 balls
• 3720007 Ball bearing -6302- (15x42x13mm)
• 3720004 Needle bearing -B188- (29x35x12mm)
• 3720009 Bearing needle set 2,0×11,8mm
• 9020070 Clutch facings -NEWFREN Vespa Cosa- 4 plates
• 9021008 Nut -DIN 934- M12 x 1,50 (used for clutch Vespa Cosa)
• 9021009 Spring washer corrugated -DIN 137- M12
• 4940011 Shift pad -VESPA- PX Lusso 125ccm (VNX2T from No. 232053), 150ccm (VLX1T from no. 624302), 200ccm (VSX1T from no. 315267)
