Cruciform -CIF HQ- Wideframe/Largeframe 1954-1979 – VN, VM, VL1-3, VB1, VBA, VBB, GL150 (VLA1T), GS150 (VS1-5T), VNA, VNB, GT (VNL2T 30001-78300), GTR (VNL2T -124013), Super 125 (VNC1T) Super 150 (VBC1T -181686), Sprint 150 (VLB1T -1170238), Sprint 150 Ve

Description

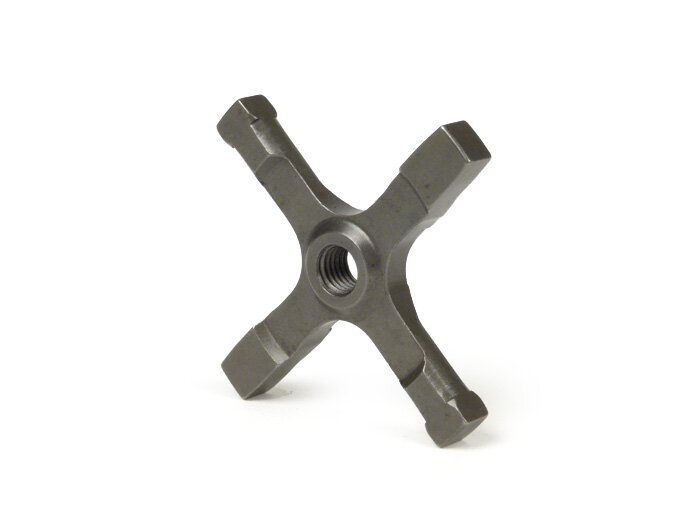

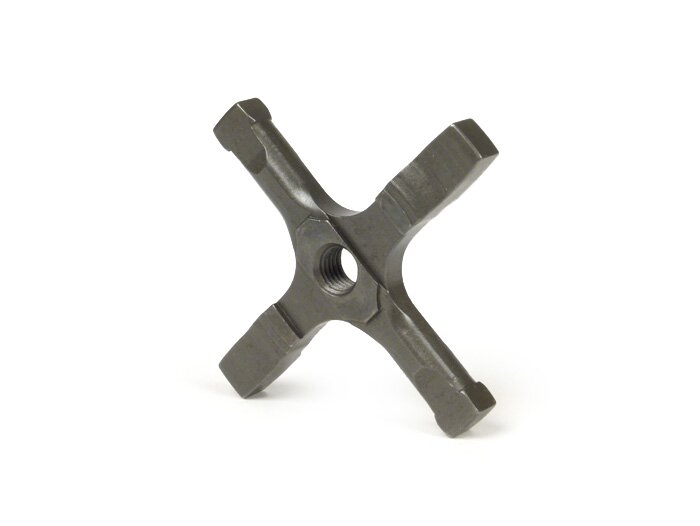

Switching cross in the version with web for use with a split switching bolt.
Reinforced version with 5.5mm instead of 5.0mm material thickness.

Suitable for all largeframe Vespa with rotary vane inlet and split shift pin.
These are

:

• Rally180 (VSD1T to no. 26848)
• Rally200 (VSE1T up to no. 4475)
• SS180 (VSC1T)
• GS160 / GS4 (VSB1T)
• Sprint (until no. 1170239)
• Sprint Veloce (until no. 169300)
• VBC (until no. 181686)
• GL150
• VBA1
• VBB1 to VBB2

Also suitable for Vespa Wideframe:

• GS150 / GS3
• VB1
• VL1 to VL3

The large frame models can also easily be converted to the better available crossbarless type of circuit breaker. To do so, simply use the one-piece shifting pin (with washer) of the PX Alt models (-1984) (Art. No.: 4940027). This can then be used with the switching cross of the corresponding models (-1984) (Art.No.:BGM6501A).
