Description

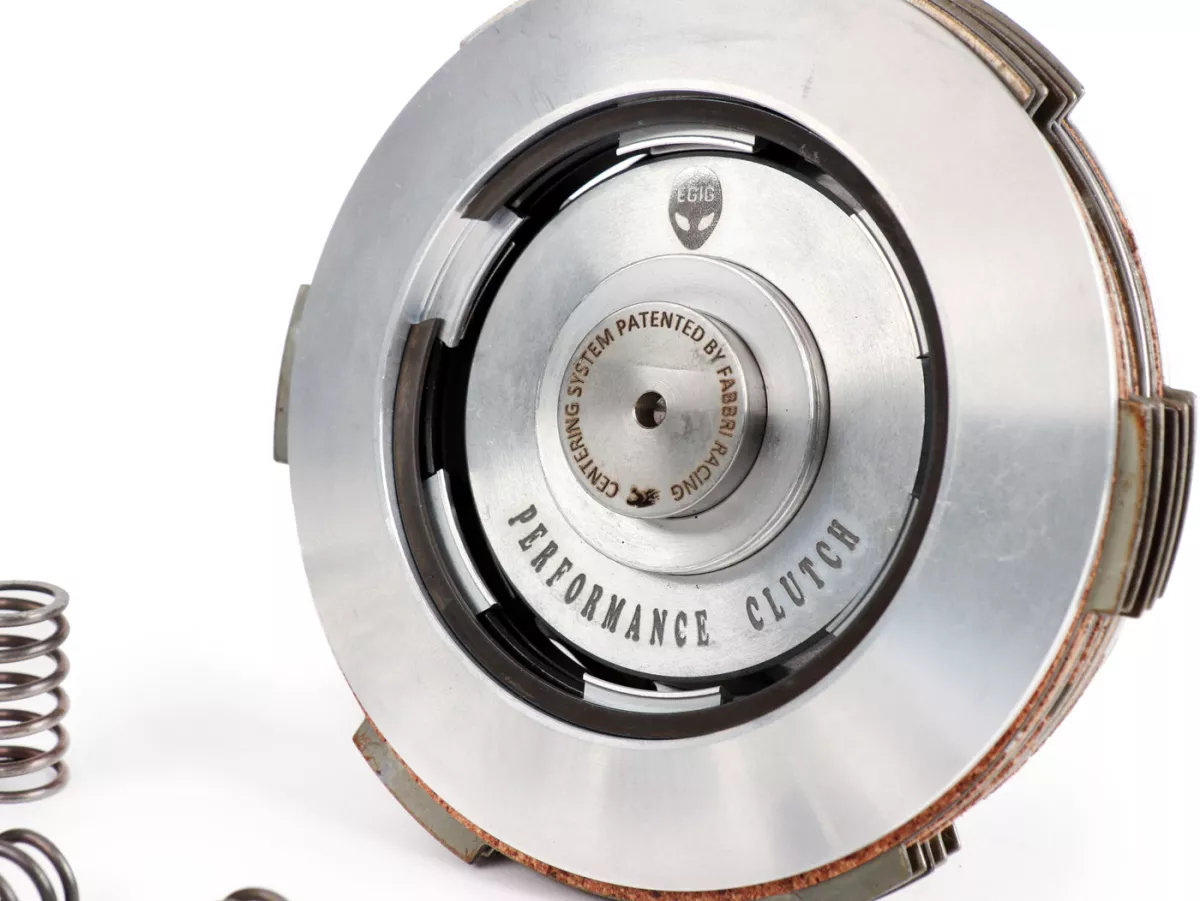

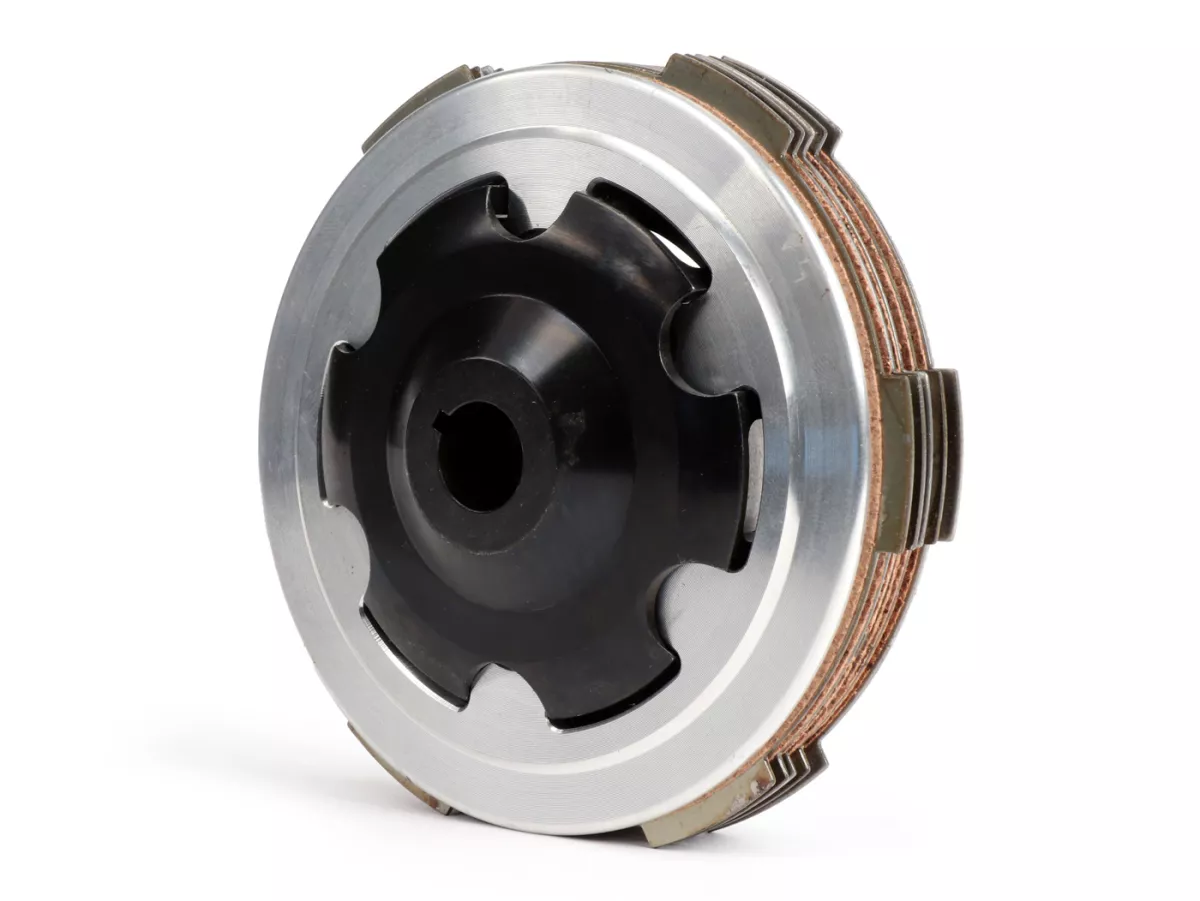

EGIG PERFORMANCE sports clutch – One Finger Clutch 2.0 – smooth-running clutch for smallframe engines up to approx. 47 hp
- 5 cork/carbon disks
- 4 steel intermediate plates
- Bearing-mounted pressure plate
- also fits into an original primary without repkit
- only for repkits bolted from the rear (with repkits bolted from the outside, the bolt heads can touch the inner basket)
- 500ml SAE 30
- No spacers necessary
- The pads of the Xl2/HP 4 disks can also be used or Fabbri 4s carbon disks

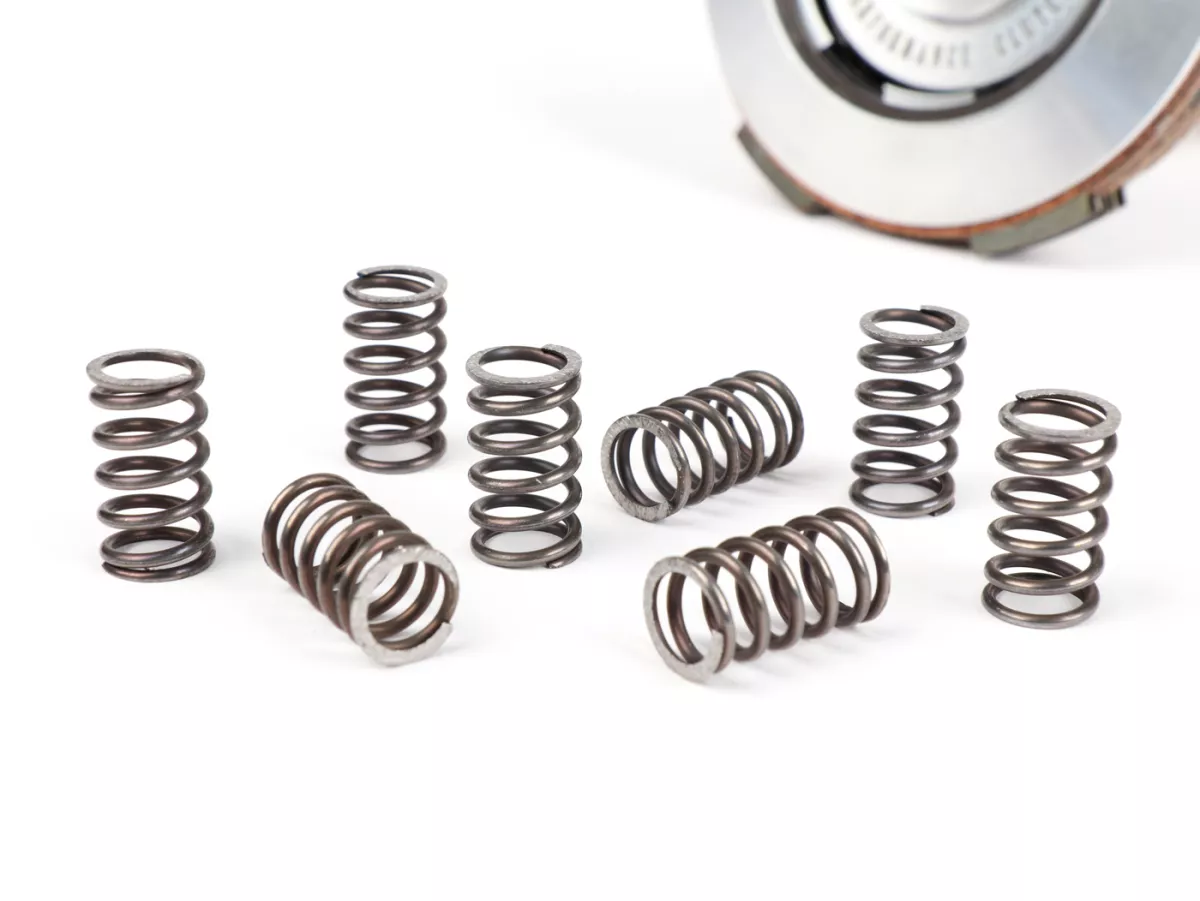

- 6 springs 30Ps 26nm
- 8 springs 39hp 32mm
- 8+4 springs 45hp 36nm (extra)
- 8+8 springs 50hp 40nm (extra) The additional inner springs, marked as extra, must be purchased separately.
The number of springs can be reduced by the 5 washers, resulting in an extremely easy to pull clutch. In conjunction with an Xl2 cover, the clutch is pulled with one finger. With 6 springs with the little finger. We recommend clutch levers with a small knob at the end, as these have considerably more disengagement travel than those with a large knob, so that the clutch disengages cleanly without much preload. Attention: The nut of the auxiliary shaft with washer must not be higher than 7 mm and the thread of the auxiliary shaft should not be higher than the nut. Furthermore, the housing seal should not be thicker than 0.2 mm when using a Piaggio auxiliary shaft. Both can impair the separation behavior of the clutch and adjustments must be made, e.g. spacing the auxiliary shaft.
