Description

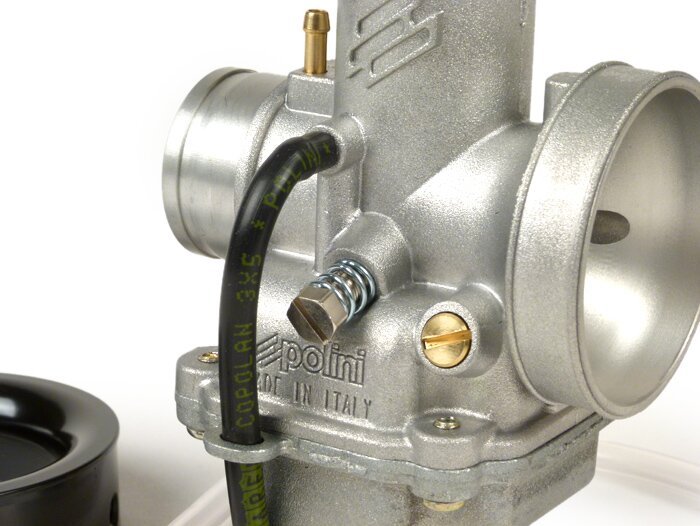

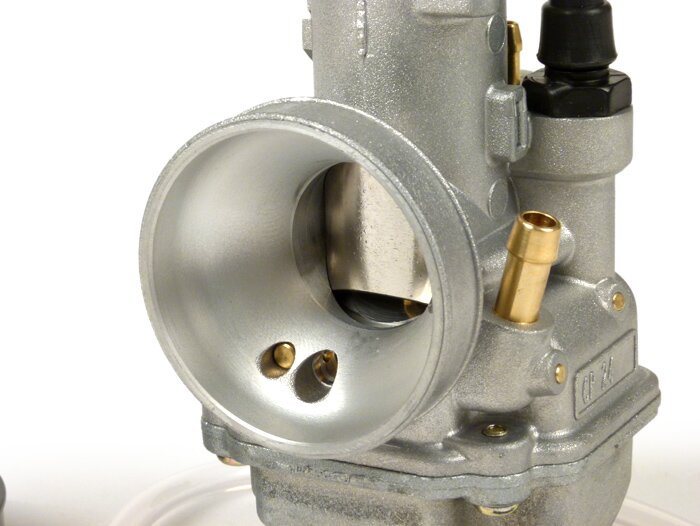

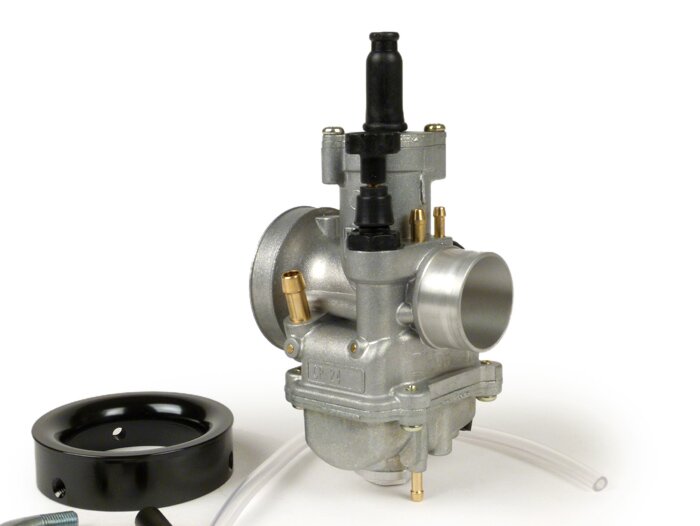

The CP Evolution series is a fully developed version of the traditional Polini CP carburettor: to exploit the positive effects of a big carburettor (more power, more torque, more power) Polini uses a clever trick. The carburettor passage opens again after the slide valve to a much bigger diameter (CP24 = 26mm). This way the Polini CP carburettor with 24 mm of passage gives more power like a Dell’Orto PHBL25 carburettor. Thanks to the small dimensions and the integrated intake manifold, the CP carburettor is ideal on all powerful engines where a small size is an advantage.
- Height: 118.5 millimetres
- Width: 66 millimetres
- Depth: 70 millimetres
- Connection width air filter side: Ø46 millimetres (Ø60mm with enclosed funnel)
- Connection width engine side: Ø28,5 millimetre
The carburettor has a round slide as well as connections for vacuum/oil (rubber caps enclosed). The main jet is identical to those of the Keihin PWK, all other tuning parts are Polini’s own. The carburettor has a cable operated cable choke (choke not included).
- main jet: 112
- secondary jet: 40
- slide needle: 14/22
- slide: 25×30°
- needle nozzle: Ø2.7mm
