Description

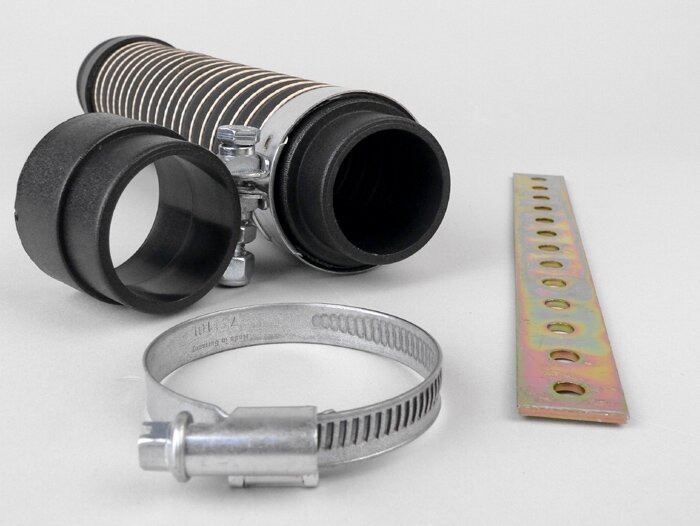

From Marchald we can offer an ingenious, flexible connecting piece for the assembly between carburettor and air filter. It is an oil and petrol resistant rubberized textile fabric which is encased in a spiral spring and the hose can be shortened individually.
On the carburettor side there is a flexible rubber connection with Ø39mm connection width (inner diameter).

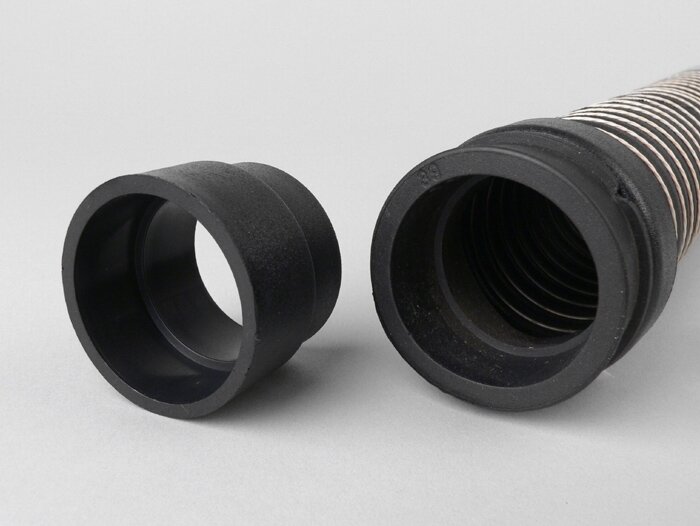

On the air filter side a stable plastic adapter with 39mm connection width (outside diameter) is fixed in the hose. Here the set includes a further adapter with 36mm connection width (outside diameter). Thus with this hose a carburettor with 39mm air filter clamping width can be flexibly connected with an air filter with 36mm or 39mm inner diameter.
straight with cramped space conditions as they often occur with the automatic scooters with Minarelli engine an ideal solution to use a large carburetor with sports air filter.
The hose fits the following carburettor types:
– Dell’Orto: 10-12-14-17,5mm PHVA / PHBN
– Dell’Orto: 20,5mm PHVB
– Dell’Orto: 24-25mm PHBL
– BGM: 17,5mm PHVA / PHBN
– Mikuni VM16 (CPI/Keeway)
– Mikuni VM20
– Ark 17,5mm
- Carburettor connection: Ø39mm
- Air filter connection: Ø36mm/39mm
- length: 220mm
Including galvanized perforated steel for fixing the hose/filter to the engine housing.
